Broadband RF Power Amplifier  SG-A100W
Views:106times
Name:Broadband RF power amplifier
Model:SG-A100W
F:500M-950M
Feicationatures

● Efficient: 45%

● High RF power output: 100W

● High output IP3: 56dBm

● High output IP2: 73dBm

● LDMOS final output

● Power supply: 220V

● High gain, wide frequency range, low distortion

Appl

Short wave and ultra short wave communication

wireless radio measuring and control system

Laboratory application and anti-jamming system

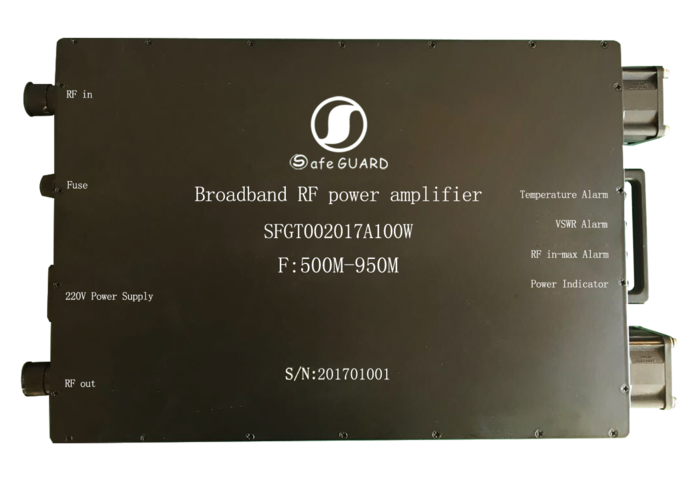

Product introduction:
SFGT002017A100W is a broadband RF power amplifier with super wide frequency range. The module efficiency is more than 45%, so that module service life is extended and cost reduced. With the advantages of LDMOS super broadband RF power

final output tube design, great broadband network matching, low cost, high gain, wide frequency range, low distortion, high reliability, anti-power reversing, and protection of RFin-max, over heating, over current, the module stability is highly increased.

Electrical Characteristics @ T= 25℃, 50Ω system

Parameter    SymbolMinimumTypeMaximumUnit
FrequencyBW500
950MHz
Power OutputPsat
100
W
Power @1dBP1dB
75
W
Small Signal GainG
45
dB
Gain FlatnessΔG
±1.5
dB
Input, output VSWR ratioS11/S22
2:12.5:1-
Odd HarmonicsH
10
dBc
Even HarmonicsH
18
dBc
Spurious SignalsSpur
70
dBc
Operating VoltageAC
220
V
Operating CurrentI
1.5
A

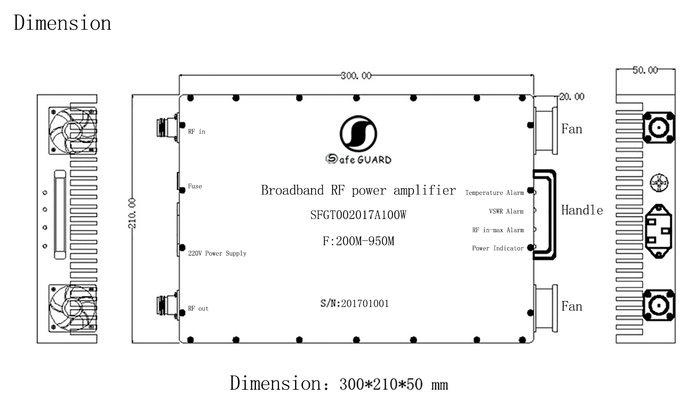

Dimension
300*210*50mm
Power Interface
3-phase power plug
Rf Connectors Input/Output
N/N
Operating TemperatureTC-20
55
Non-operating TemperatureTst-30
85
Relative humidity w/o condensationRH90%
Thermal OverloadTod85℃max
VSWR OverloadVSWR3:1max
RFin-max OverloadRFin-max10dBmmax

Electrical Characteristics @ T= 25℃, 50Ω system

RF Connectors
RF inNRF outN
Power connector3-phase power plugProtector tube10A
Thermal alarm lightyellowVSWR alarm lightyellow
RFin-max alarm lightyellowPower indicatorgreen
Fan*20
