New  Radio for IP motion solution SG-1400
Code: SG-NT140
Prev
Detail

The new model SG-NT140 is a robust broadband COFDM Ethernet wireless transceiver radio,

which is equipped with standard Ethernet protocol E802.11 and also RS232 / TTL serial port with dual aerials for any IP solutions. It combine with FHSS technology to make sure betterstability signal communication even in rapid movement condition and selfhealing ability then can hop to a good frequency while happen to interference by surrounding. It could achieve any media files share as like what virtual network can do., like Ethernet access, download database, VOIP,remote maintain functions and so on.


Features:
•Up to 10Mhz bandwidth
•FHSS technology
•Support for any E802.11 devices
•Dual rf antenna ports
•Data serial port built-in(TTL)
•User-defined encryption support
•Point-to-point wireless communication
•WLAN Support
•Rapid movement communication support

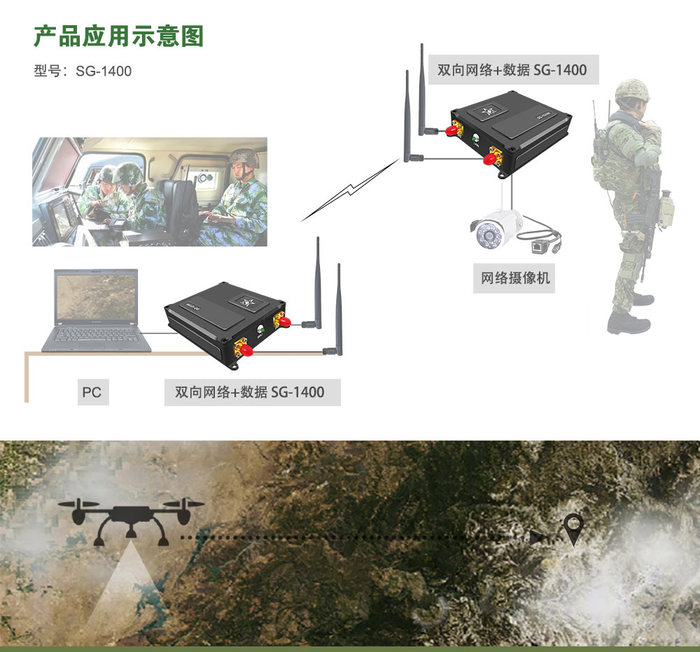

As the radio is small, light weight which is perfect fit for size and weight sensitive application! Widely apply in UAV, Vessel,police,army, Vehicle to command centre and ect.. wireless video and data remote control.



Specifications:
Working frequency:1430-1444MHz(Automatic frequency selection)
Technology: FHSS
RF bandwidth:5M/10M。
RF power :0.5W (1W-2W can be customized)
Support 4channel standard definition sync.
Sensitivity:-93dBm。
Data serial port:TTL232
Ethernet:standard RJ45
Protocol: E802.11
Baud rate: 115200bps maximum

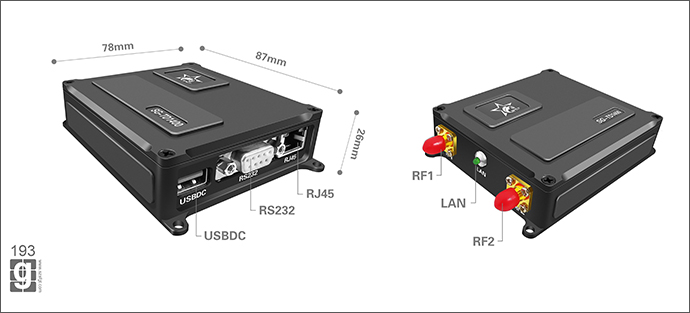

Dimension:87*78*26mm
Weight:193g
Working voltage: DC 5V
Working current: 0.5A
Power consumption:<2.5W。
Working temperature:-40℃~60℃。
Transmit distance: 8-20km (on UAV)
