5W COFDM FHD transmitter SG-H5000B
5W COFDM FHD transmitter SG-H5000B
Code: SG-H5000B
Detail

Powerful HD H.264 COFDM Video Transmitter

SG-H5000B

Model SG-H5000B is our powerful full HD av signals transmitter,using the core of mobile communication technology COFDM,which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment.5-8W rf power output adjustable.Support full HD 1080P(1080i) H.264 encoding format and HDMI/HD-SDI inputs (single selection) as well support BNC stereo balance audio input and narrowbandtransmission system.

Features:

COFDM modulation technology ensure the stability of signal

Support FULL HD quality,1080i/P@30fps;

Built-in with HDMI and BNC ports;

●Provide AES128 encryption for video safety.

It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz.;

5-8W rf power adjustable

Low delay time

●With four holes at the bottom of the transmitter for fixed installation

●Widely used in helicopter shooting,Live broadcast and etc

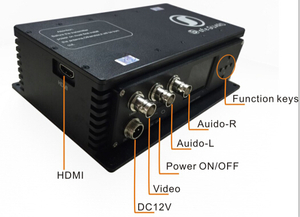

Photos of transmitter in HDMI&BNC interfaces :



Specifications:

Working voltage V

DC11~14.5V

Working current A

1.9A@DC12V

Frequency Output range

300-4400MHz(option),select within 100MHz space

Frequency  bandwidth

2/2.5/4/8MHz(adjustable),4/8MHz is for HD system

RF Power output

5-8W (adjustable)

SHG

>52dBc

Modulation

COFDM

Encryption

AES128/256bits

Constellation

QPSK,16QAM,64QAM

FEC

1/2,2/3,3/4,5/6,7/8

Carrier

2K,8K

Guard Interval

1/32,1/16,1/8,1/4

Flatness

Full band≤2dB,8MHz≤0.5dB

AV input

HDMI/SDI and BNC

Max speed rate

450km/h

Audio format

Stereo L/R audio channel

Audio encoding

MPEG1 Layer2

Vidoe resolution

Minimum 1280*720 50i

Maximum 1920*1080 60P

Video coding

H.264

Video bitrate

500kbps-16.68Mbps(auto-adaptation)

Video format

PAL/NTSC

Operating Temperature

-25~55

Storage Temperature

-40~70

Dimension

200*120*60mm

Weight

1.4kg

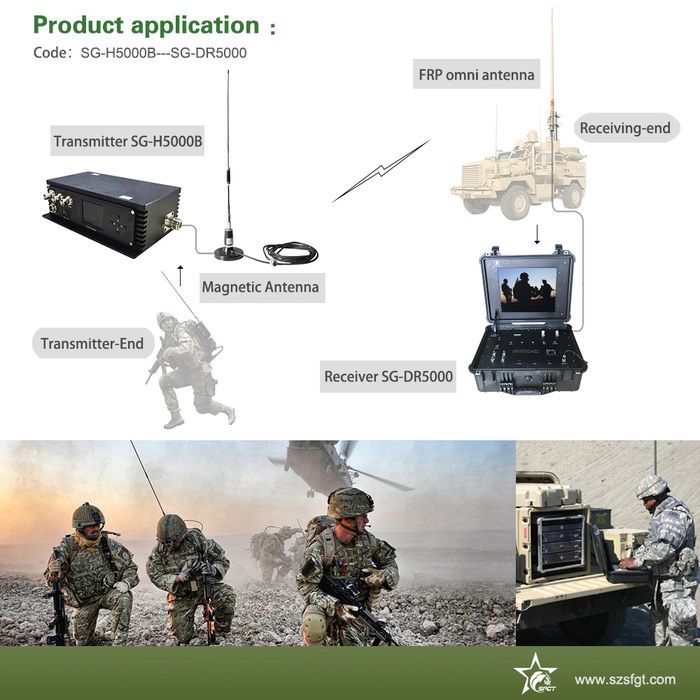

Product applications:

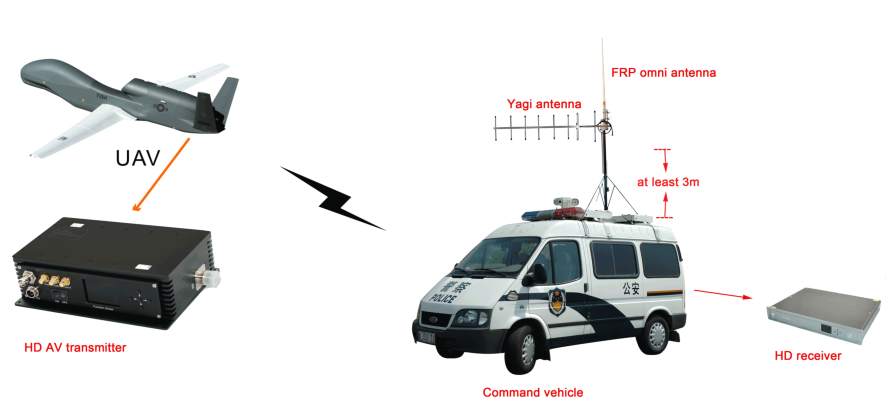

1) UAV-to-ground application:

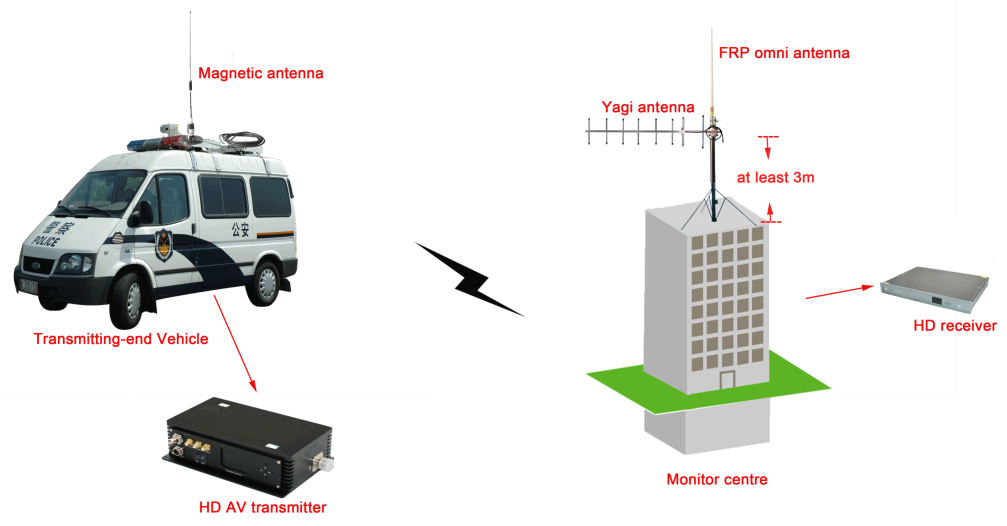

2)Vehicle to building application:
