Manpack COFDM Transmitter  SG-R5000
Code: SG-R5000
Detail


Manpack COFDM Video Transmitter

SG-R5000

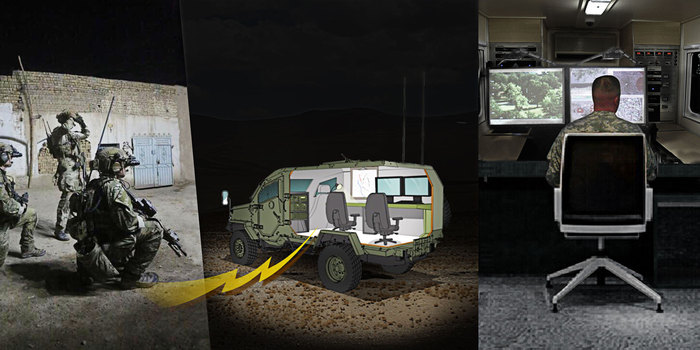

 This military backpack system is special for man-portable transmitter enter into the area of the incident to gather information and video signal transmission when in the condition of heavy obstacles,such as many building barriers,severe electromagnetic interference, remote mountain town or other harsh environments,which cause command vehicale can’t directly reach the site and forced to parked in vicinity.

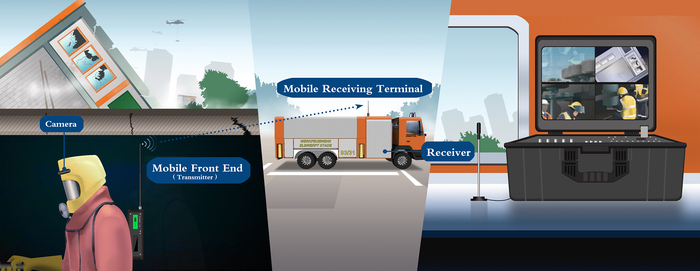

   At the front-end personnel, scouts,firefighters,rescue personnel or tevevision interview personnel using small size,backpack or Buckle format transmitter transmit the live signals to the rear command vehicle.Then the command vehicle will receive the image displayed on the monitor via the receiver which convenient for real time understanding of the site condition and timely command.

Features:

COFDM modulation,H.264 video compression.

■ 5-8Watt rf output configured by user

■ 2/2.5MHz rf bandwidth for further distance project in 720P resolution

■Alloy aluminum material of outer-case is good for better heat dissipation and anti-interface

■ AES128bits encryption ensure the safety of video.

■User easy to operate/configure the parameters via the buttons

■Low delay time

Tech Specifications:

Frequency

300-4400MHz(option)

RF output Power

5-8Watt(adjustable)

Voltage/current

DC12V/3A

Modulation

COFDM 2K QPSK

Constellation

QPSK,16QAM,64QAM

Bandwidth

2/2.5/4/8MHz

Transfer rate

up to 12Mbps automatically allocation

FEC

1/2,2/3,3/4,5/6,7/8

Guard Interval

1/32,1/16,1/8,1/4

Audio Input

stereo left and right channels

AV Interface

BNC

Video Compression

H.264

Data encryption

AES128/256bits

Flatness

Full band≤2dB ,8MHz≤0.5dB ;

Carrier

2K,8K

Video Signal

1Vp-p@75Ω,NTSC/PAL adaptive

Video format

PAL/NTSC(self-adaption)

Resolution

1280*720,720P

RF Interface

N(F)

Case Material

Aluminum alloy, rainproof

Work environment

-30~70°C

Distance

3-5km NLOS in city for manpack

100km LOS for sky to ground

Size

200*130*60mm

Weight

1.5kg(net weight)

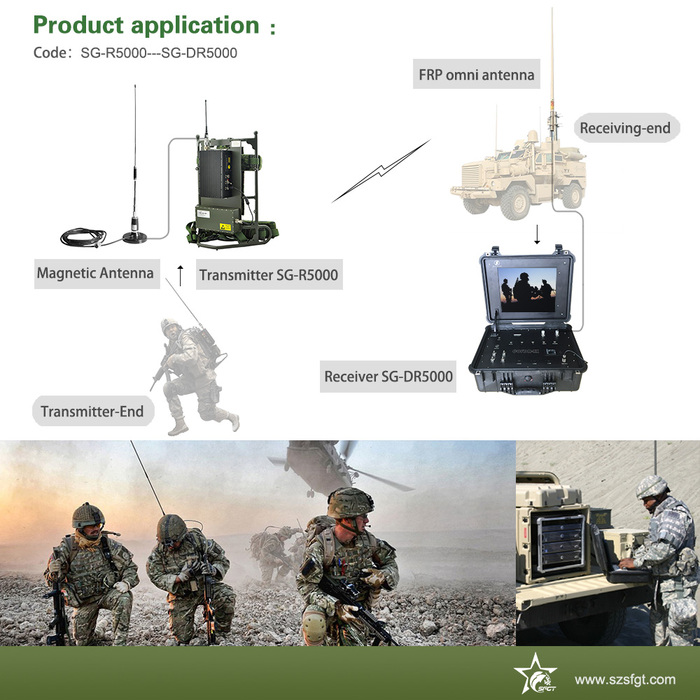

Application:
