DVB-T HD transmitter       SG-8M03HD
Code: SG-8M03HD
Detail

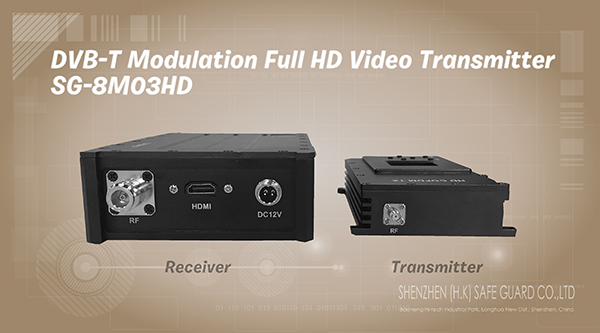

DVB-T Modulation Full HD Video Transmitter

SG-8M03HD


SG-8M03HD is full hd image transmission system equipment,standard DVB-T modulation.The product use of advanced video processing technology and efficient encoding algorithm to improve the coding efficiency and reduce coding delay and increase the error rate,and then improve image quality.It can be the lowest bit rate to achieve the best quality of image.

Features:

 1) Compact designed,lightweight;

 2) Full hd resolution,low delay;
 3) High performance,low cost

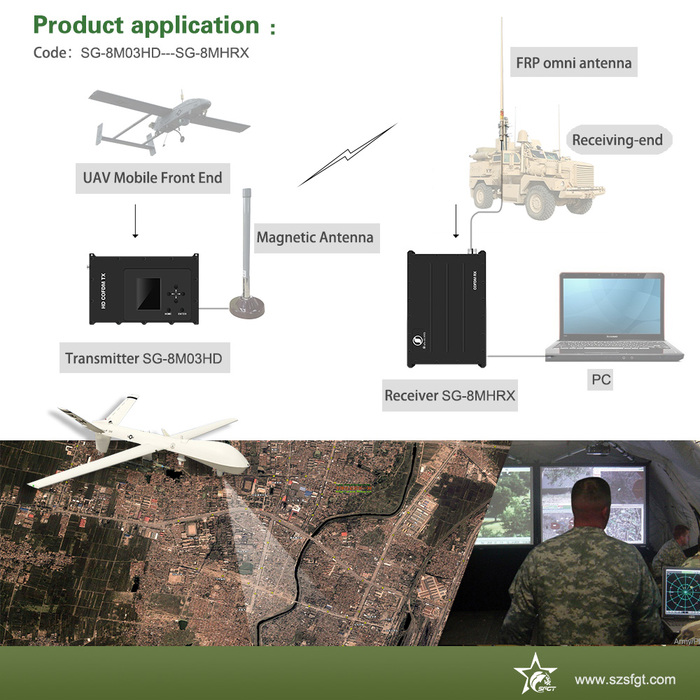

 4) Special for UAV/Drones long range video communication;
 5) Maximum rf output 3Watt,can support 40km LOS range.

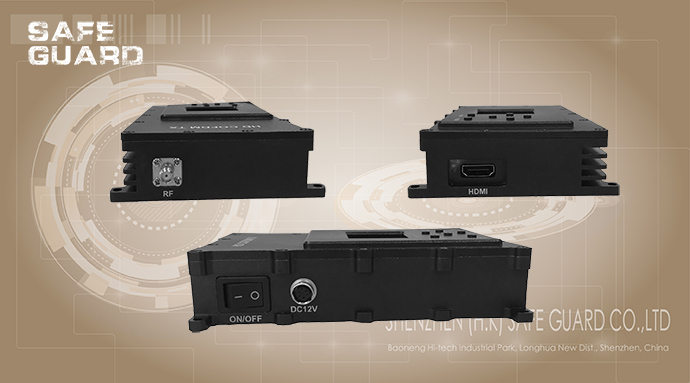

Transmitter photos



Tx specifications

Model SG-8M03HD

Power supply
DC 7-16V input/output
Power consumption
<5W
Modulation
DVB-T
Modulation type
QPSK/16 QAM/64 QAM
Scrambling way
Manual settings ON/OFF
RF power output
1-3Watt (2K mode)
RF bandwidth
8MHz
AV input
HDMI
Resolution
HD1080P(1920*1080),compatibility 1080I, 720P,480P and standard resolution
Video compression
H.264/MPEG-4/MPEG-2
Antenna output
50Ω, SMA or “N” type Connector
Working frequency
300MHz~999MHz (optional)
Step frequency
1K Steps
Guard interval(GI)
1/4, 1/8, 1/16, 1/32 (optional)
Code rate (CR)
1/2, 2/3, 3/4, 5/6, 7/8 (optional)
FFT
2K or 8K
MER
>34dBm
LCD display
Showing working status and parameters
Parameter setup
Manual operation by buttons

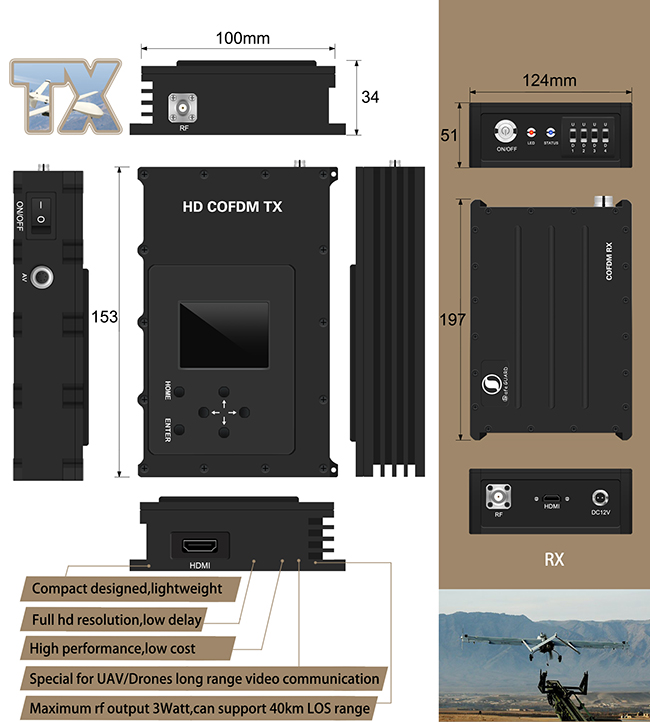

Dimension
153*100*34mm
Weight
485g
