New HD COFDM video PCB modulator support triple video in/out
Code: SG-HBD03
Prev
Detail

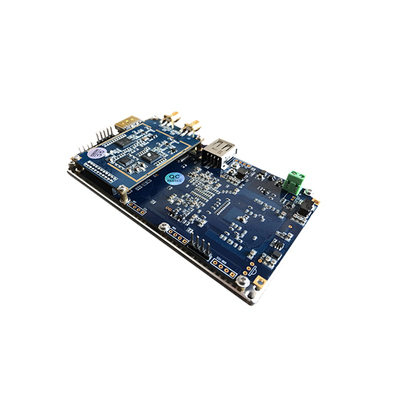

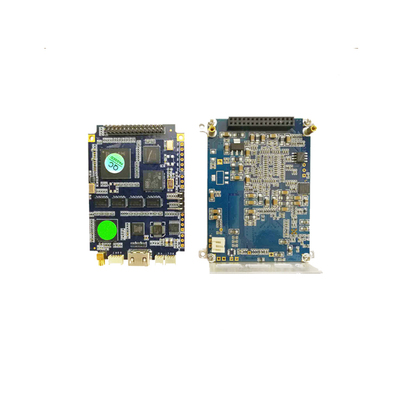

New HD COFDM Video TX RX modulators SG-HBD03


SG-HBD03 is a new design ultra miniature COFDM digital video audio modulator/demodulator  PCB from  Shenzhen  Safe Guard Co., Ltd. It has the unit design with radiation fin (can be took apart if not needed).The most prominent this board is of composite, AV, HDMI, and SDI video inputs/outputs, designed with 3 video ports, HDMI, SDI, and CVBS, which is perfect for analogue and digital cameras. What’s more, it designed with RS232 port for data simplex transmission. SG-HBD03 is suitable for line of sight and non-line of sight transmission.Increased range  may be achieved by selecting transmission mode,booster amplifiers and antenna type.


Features


* COFDM modulation technology

* Buit-in with mutiple video inputs: HDMI, SDI and CVBS

* Provide with RS232 serial port for data simplex communication

* High safety with AES user-defined passwords

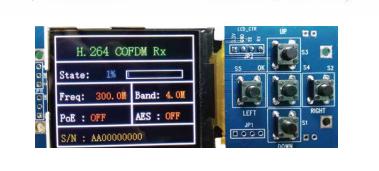

* LCD panel and 5 keypad for easy setup

* small size, lightweight, low consumption

* support 300MHz to 4400MHz

* suitable for line-of sight and non-line of sight video transmission

* low latency

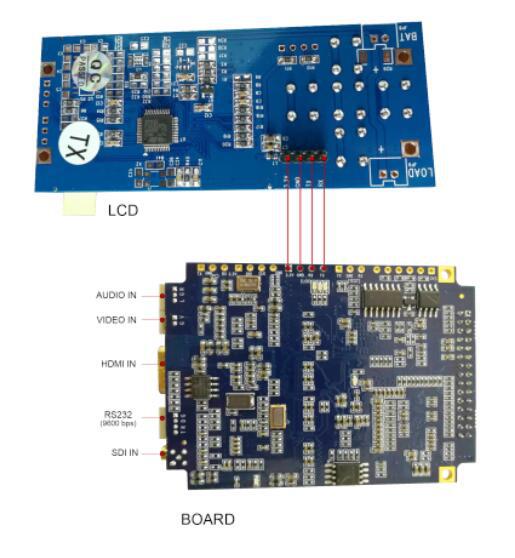

Connection with LCD screen panel





Tx specifications


Voltage

DC12V

Current

400mA

Audio input

AV (Stereo audio left and right channel)

Video input

HDMI & HDSDI & CVBS

CVBS interface

For SD analogue video signal input

HDMI interface

For HD digital video signal input, support HD 1080P, 720P, 576, 480

HDSDI interface

For SDI digital video signal input, support HD 1080P, 720P, 576, 480,

built-in with audio embedding

Data serial port

RS232 ,simplex communication

Bandwidth

2/2.5/4/8MHz (adjustable)

Frequency

300MHz-4400MHz, stepped in 1MHz

Modulation

COFDM 2K

RF power output

0dBm (1mW)

Encryption

AES user-defined password

FEC

1/2, 2/3, 3/4, 7/8

Guard interval

1/32, 1/16, 1/8, 1/4

Video coding

H.264

Video format

NTSC, PAL

Video resolution

1080P/i, 720P/i

Parameter setting

User manually setting through LCD display

Antenna port

SMA(50Ω)

Dimension

50*70*15mm

Weight

80g(with radiation fin),  50g (without radiation fin)




RX demodulator

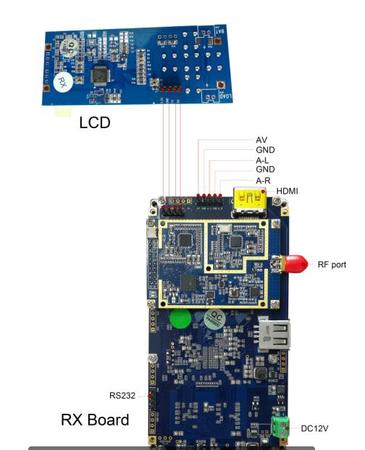

See the below diagram of LCD control panel& Rx PCB connection.

Attention: the opposite side of LCD board to connect to Rx.





RX  Specifications

Voltage

DC12V

Current

350mA

Audio output

AV, Stereo audio left and right channel

Video output

HDMI, AV

CVBS interface

For SD analogue video signal output

HDMI interface

For HD digital video signal output, support HD 1080P, 720P, 576, 480

Data serial port

RS232 (simplex)

Bandwidth

2/2.5/4/8MHz

Frequency

300-4400MHz, stepped in 1MHz

Modulation

COFDM 2K

Encryption

AES user-defined password

FEC

1/2, 2/3, 3/4, 7/8

Guard interval

1/32, 1/16, 1/8, 1/4

Video coding

H.264

Video resolution

1080P/i, 720P/i

Video format

NTSC, PAL

Parameter setting

User manually setting through LCD display

Dimension

120*65*15mm

Weight

140g(with radiation fin),  90g (without radiation fin)
